Forgot password

The Zuar Portal forgot password feature requires the configuration of an SMTP server for sending the forgot password email. Follow these steps to enable forgot password and ensure that SMTP is configured properly:

  1. Configure SMTP credentials
  2. Configure an SMTP config
  3. Configure a mail sender
  4. Configure a message template
  5. Configure the Forgot Password feature
  6. Enable the Forgot Password link on the login page

SMTP Credentials

Credentials for SMTP are stored in the Portal database and can be added via the Credentials CLI. In example below we can see set of 2 credentials saved with IDs test_basic_creds, test_custom_creds.

Credentials CLI

It is recommended to use CLI commands to manage SMTP credentials. To access the credentials CLI, you must first SSH into the Portal. Once logged into the Portal, step into the auth container with the following command:

cd ~/portal-docker-setup/setup
docker-compose exec auth bash

Adding Basic Credentials

Run the following CLI command to add basic credentials:

python -m auth credentials add basic --username=test_user2 --password=test_password --credentials-name=test_basic_creds
Property Description
username Credentials Username
password Credentials Password
credentials-name Credentials Name to be saved

Adding Custom Credentials

Run the following commands to add custom credentials:

python -m auth credentials add custom --data="{'prop':'value'}"  --credentials-name=test_custom_creds
cat credentials.json | python -m auth credentials add custom --data="{'prop':'value'}"  --credentials-name=test_custom_creds
Property Description
credentials-name Credentials Name to be saved

Adding M360-Oauth2 Credentials

Run the following CLI command:

python -m auth credentials add m365-oauth2 --tenant-id=<YOUR_TENANT_ID> --client-id=<YOUR_CLIENT_ID> --username=<YOUR_USERNAME> --client-secret=<YOUR_CLIENT_SECRET>

Obtaining Gmail Basic credentials

Follow these steps to obtain Gmail App password: Obtain Gmail App Password

Obtaining Outlook Basic credentials

Following this steps you will be able to obtain Outlook App password. Obtain Outlook App Password

Obtaining Outlook oAuth2 credentials

  1. Login to Azure.
  2. Search for App registrations and then choose it from the listed Services.
  3. Choose New registration to create a new application.

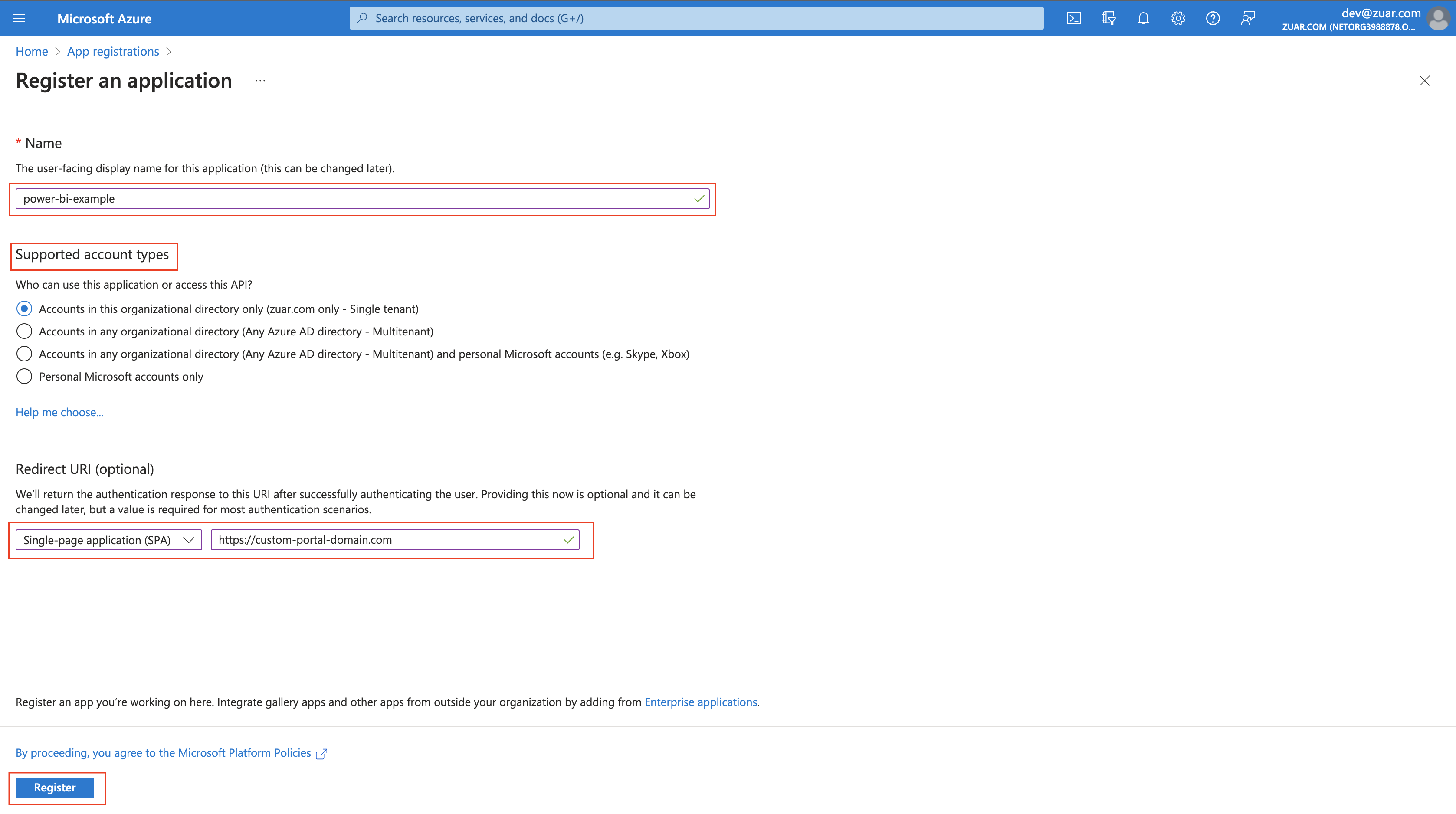

  4. Enter the application Name, select the appropriate option under Supported account types, under Redirect URI select Single-page Application (SPA) and enter your Zuar Portal domain (e.g. https://customer.zuarbase.net). Finally, click Register. Screenshot

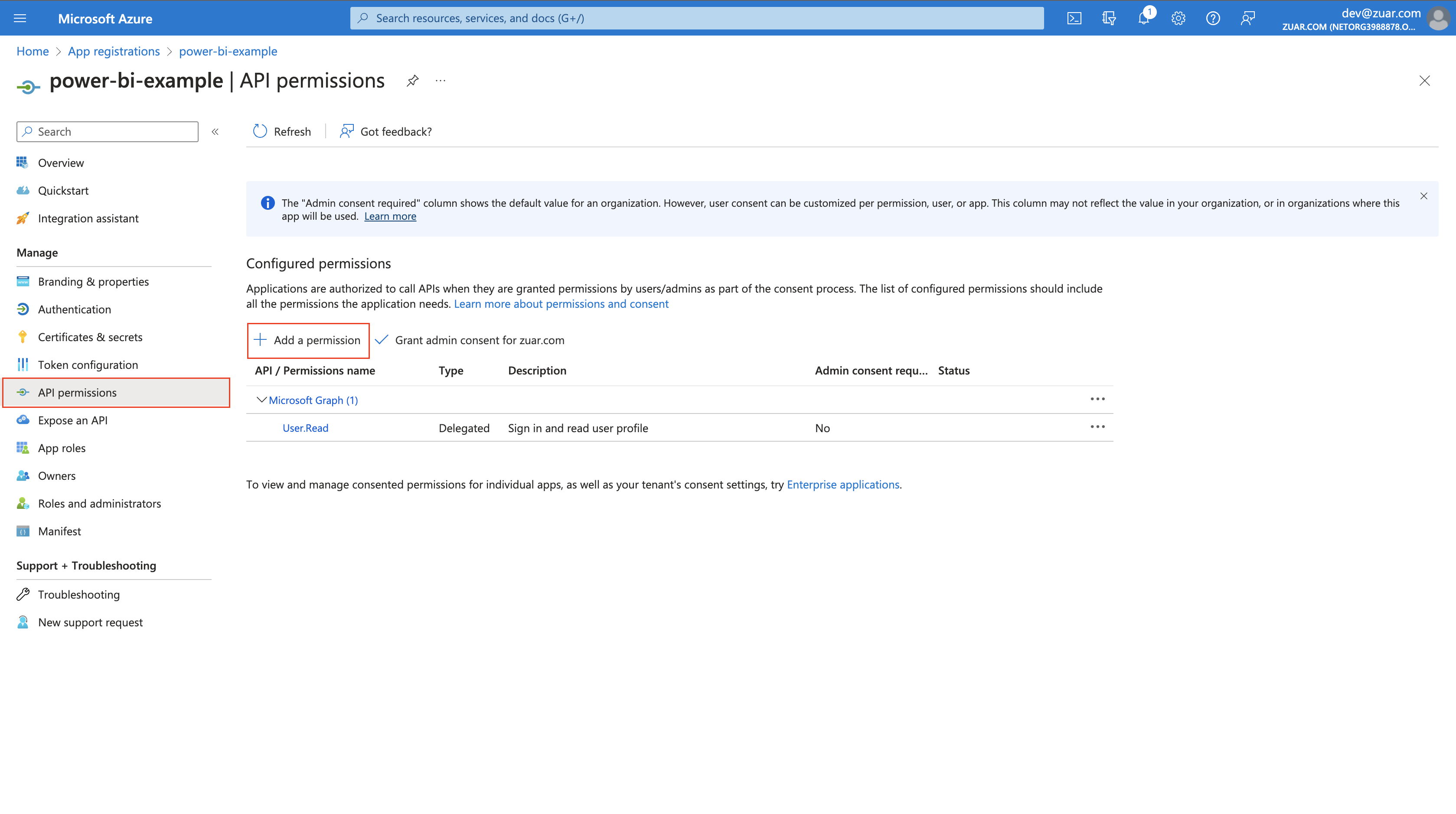

  5. Choose API permissions in left sidebar. Then click + Add a permission. Screenshot
  6. Select Mail Service.
  7. Click Delegated permissions, and select Mail related permissions.
  8. Click Application permissions, and select Mail related permissions.
  9. Click Add permissions.
  10. Click Grant admin consent for .... There should be green checkmarks in the Status column for each row.

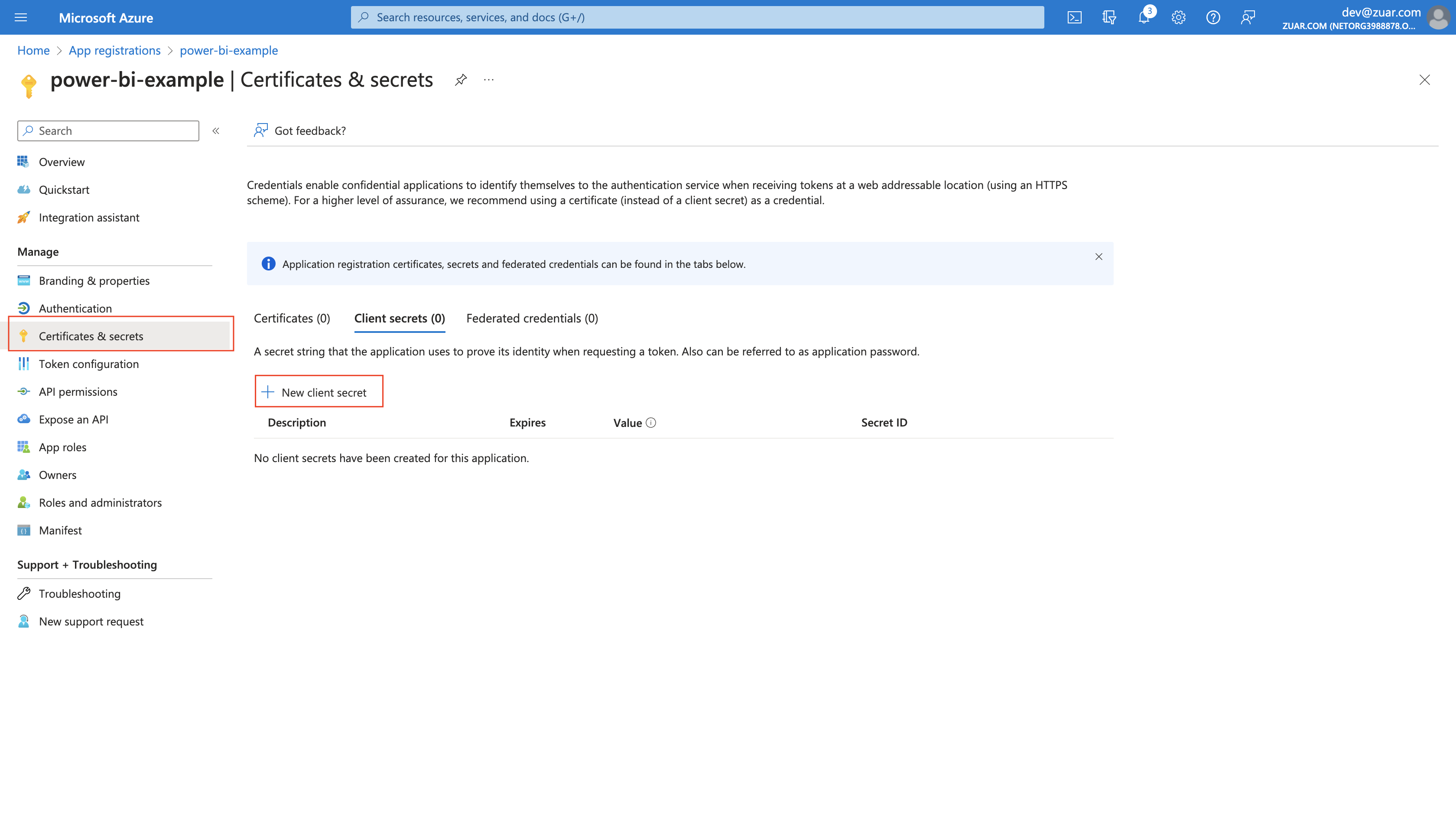

  11. Click Certificates & secrets in the left sidebar. Click + New Client secret. Screenshot

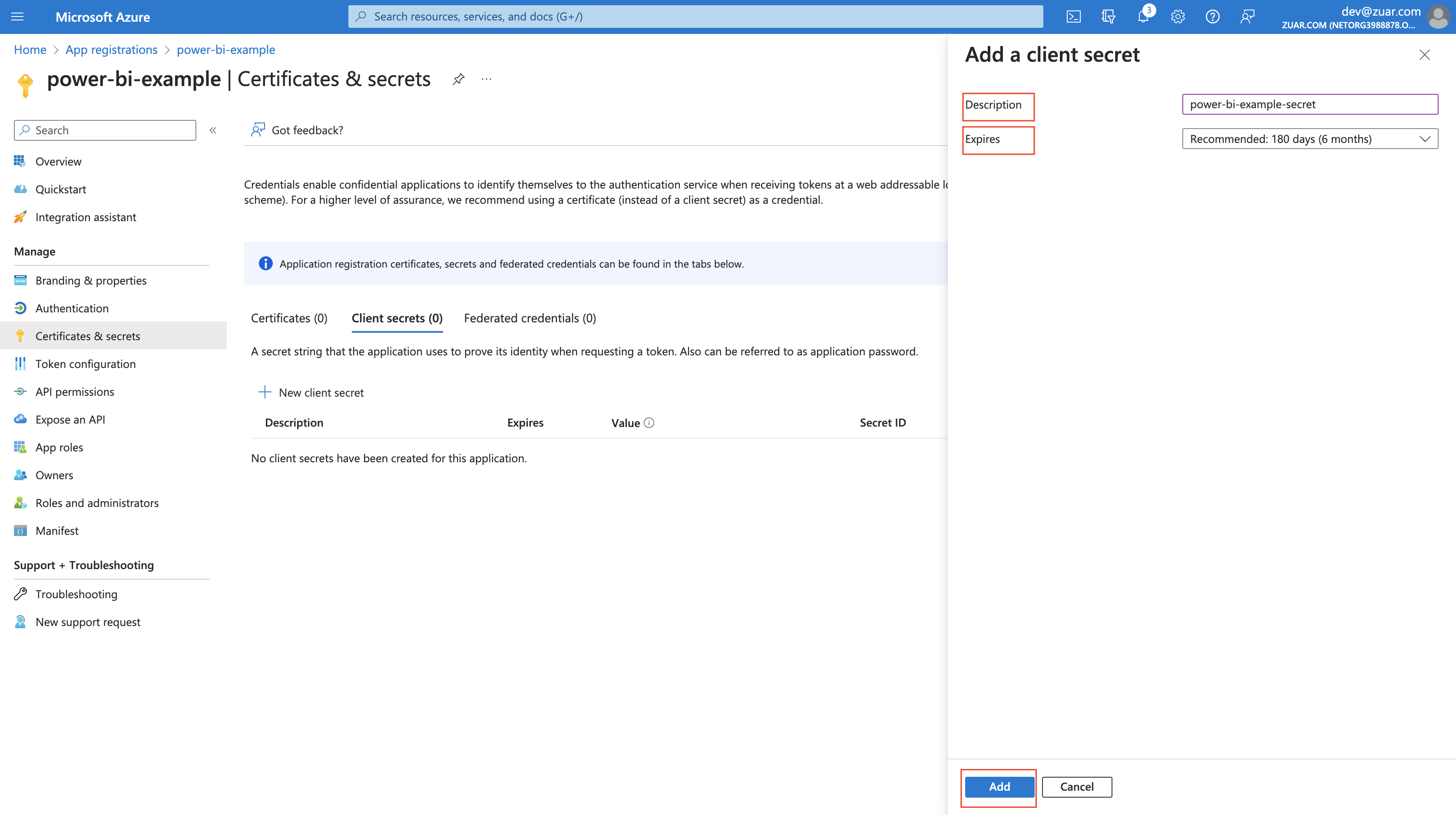

  12. Enter a Description and select an appropriate Expires date, then click Add. Screenshot

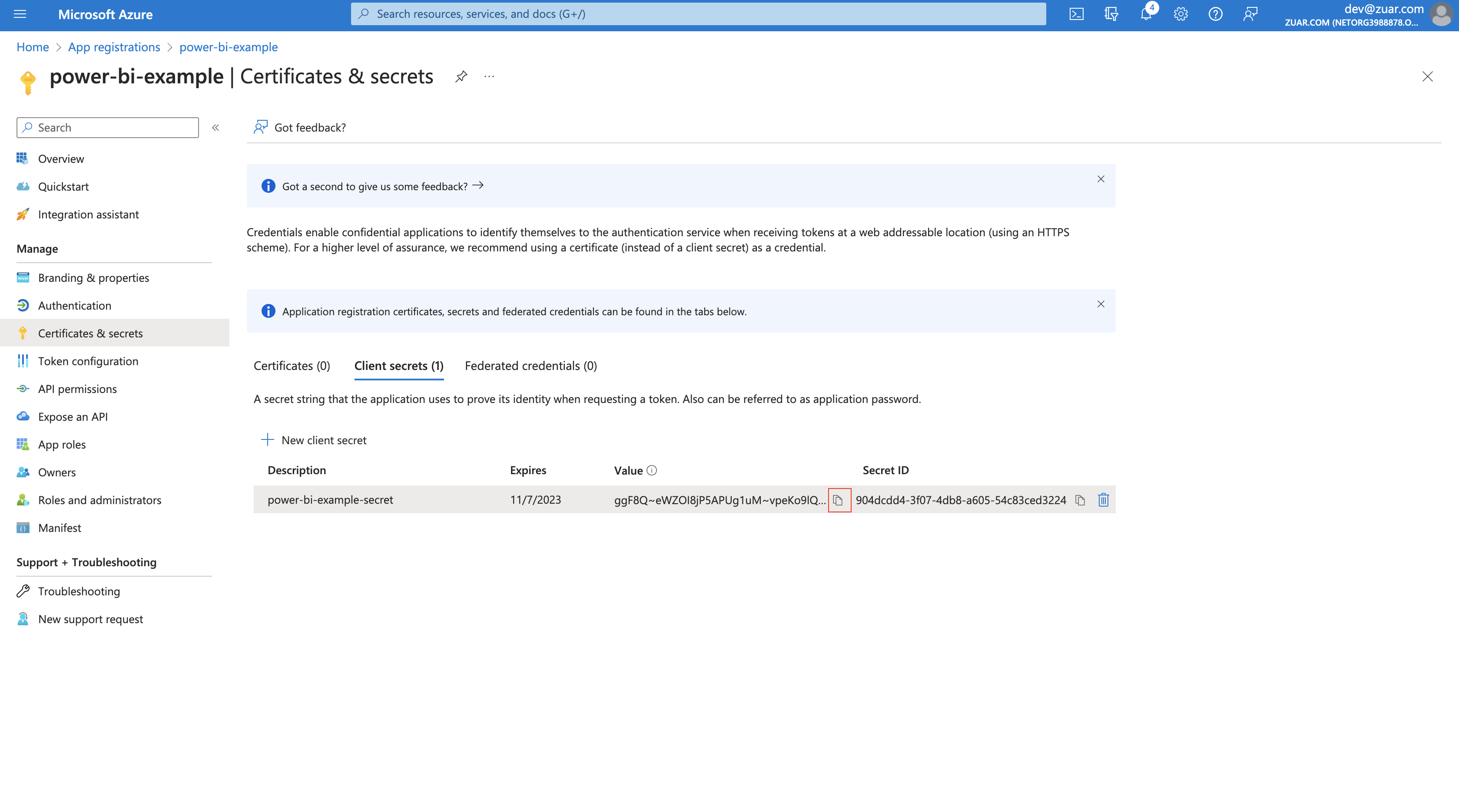

  13. Click the copy icon next to the Value and save the string as this will be our --client-secret enviroment variable. Screenshot

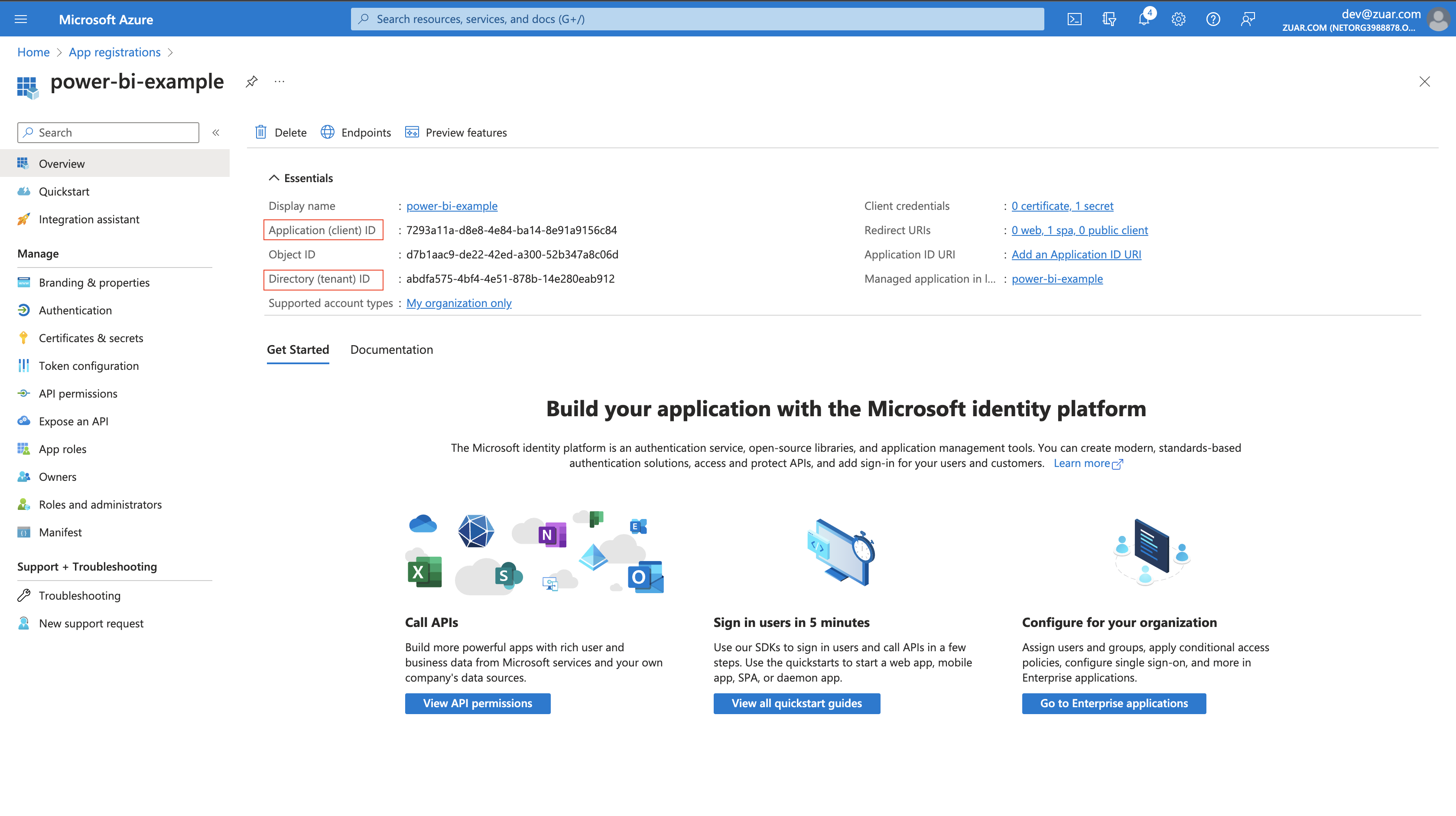

  14. Click Overview in the left sidebar, then collect the remaining enviroment variables. Application (client) ID = --client-id, Directory (tenant) ID = --tenant-id. Screenshot

SMTP Config

To check default configs check app/auth/conf/default folder. To add or edit configs edit file located at app/auth/conf/local. In example below, we can see two defined configs in communication.email.smtp.configs section.

communication:
  email:
    smtp:
      configs:
        gmail:
          host: smtp.gmail.com
          port: 587
          timeout: 20
        outlook:
          host: smtp-mail.outlook.com
          port: 587
          timeout: 20
...
Property Type Description
host string SMTP host address
port number SMTP port
timeout number Timeout of SMTP request

Mail Sender

Edit the config file located at ~/app/conf/auth/local/00_local_config.yml (Portal version 1.12.0 and before) or ~/portal-docker-setup/for_mounting/app/conf/auth/local/00_local_config.yml (1.13.0 and later). If you dont have one, create it manually. Add or edit the following section.

app:
  senders:
    mail_sender:
      config_id: outlook
      credentials_id: m365_dev_zuar_smtp_credentials
      mail_from: CPortal Test <dev@zuar.com>
      type: smtp
    ...
...
Property Type Description
config_id string ID of an SMTP configuration from the previous step
credentials_id string ID of credentials to be used with SMTP. This is the value you entered in the Credentials CLI command for --credentials-name
mail_from string Email address to be displayed as sender
type Enum[string] Type of sender. Available options is smtp, logging

Message Template

Edit the config file located at ~/app/conf/auth/local/00_local_config.yml (Portal version 1.12.0 and before) or ~/portal-docker-setup/for_mounting/app/conf/auth/local/00_local_config.yml (1.13.0 and later). This section contains an HTML template to be used when sending the forgot password message. It is possible to define multiple templates in message_templates section. In the example below, reset_password_email_html_template is a template's ID. Use ${reset_password_link} to interpolate the reset password link into the email template.

message_templates:
  reset_password_email_html_template:
    type: html
    title: "Reset password"
    body: '<p>Hello,<br>Click the link to reset your password: <a href="${reset_password_link}">Reset</p>'
...
Property Type Description
type string Type of template
title string Title of email
body string Template of message. Use ${reset_password_link} to insert restore password link.

Forgot Password Feature

To enable and configure the forgot password feature, edit the config file located at ~/app/conf/auth/local/00_local_config.yml (Portal version 1.12.0 and before) or ~/portal-docker-setup/for_mounting/app/conf/auth/local/00_local_config.yml (1.13.0 and later). If you dont have one, create it manually. This section contains general settings for the reset password functionality.

app:
  features:
    reset_password:
      enabled: true
      sender: mail_sender
      message_template_id: reset_password_email_html_template
      available_user_sources: [null, "LOCAL", "TABLEAU"]
Property Type Description
enabled boolean Disable or enable forgot password functionality
message_template_id string ID of template to be used in message. See more
sender string ID of sender configuration. See more
available_user_sources List[string] List of user's sources that can use forget password functionality

Finally, to enable the forgot password link on your login page, browse to the editor at http:///admin/edit. In the dropdown, select login.html to edit your login page. Locate the <login-form> element and set the hide-forgot-password attribute to false. Click "Save" to save the page.

<login-form heading="Zuar Portal" button-text="Log In" hide-forgot-password="false" server=""></login-form>
